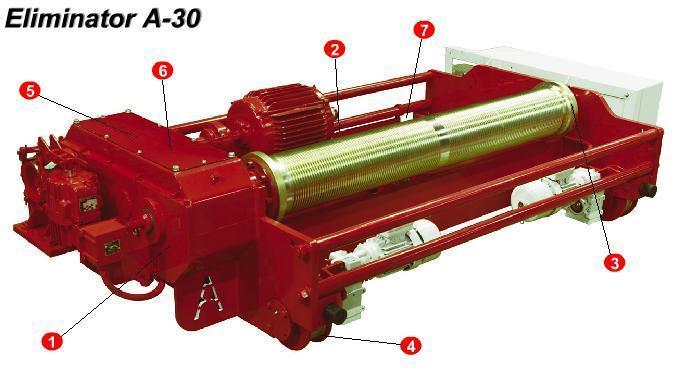

(1) As with all
heavy-duty Ace World Companies hoists, The Eliminator class hoists have reducer
cases that split along the center-line of the shafts to facilitate easy repair
and reduced maintenance cost.
|
(2) Sheaves are
hardened to 400 Brinell for reduced maintenance and long life under the most
demanding applications. Sheaves are easily accessible to reduce down time during
wire rope inspection and replacement.
|
(3) The drum tail
bearing is an easily accessible, piloted flanged, spherical-roller bearing that
is designed for long no-maintenance service. If replacement is required years
down the road - it can be done quickly, easily, accurately and inexpensively.
|
|
 |
 |
 |
|

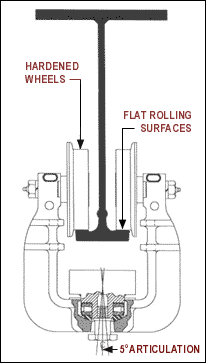

(4) Wheels are
heat treated to 400 Brinell for durability and freedom from maintenance. Strong
alloy steel shafts are supported on both ends by encapsulated, double-row,
spherical-roller bearings with an L-10 life exceeding 10,000 hours.
|
(5) Hoist gearing
is helical with a 25 degree pressure angle for high strength. Gears are cut from
through-hardened forgings and have a hardness of 40 to 42 Rockwell "C" scale for
durability, long life and low maintenance.
|
(6) The full
length removable
inspection cover allows full visual inspection of all
gears, shafts and bearings even with a load on the hook. If the unit is equipped
with a mechanical load brake, it can be adjusted through the inspection opening
without disassembling the reducer. This means inspections and adjustments are
quick, easy and thorough.
|
|
 |
(7) Platforms
provide safe easy access to all hoisting components for fast easy inspection,
routine maintenance and rapid repair with minimum down time.
|
|
